How does a Pressure Gauge work?

Reading Time: 4 minutes

Do you want to learn how to do Pressure Gauge work? You choose the right place. Pressure gauges are tools that help in measuring the pressure in a system. Moreover, it checks the efficiency of the product. It also notifies if there is any leak in the system. Before moving any further, the characteristic of pressure is to be understood. After that, an appropriate pressure gauge can be selected.

The fundamentals of Pressure

The force applied to the surface per unit area is termed as Pressure. It can be measured in various ways. Gauge pressure is absolute Pressure that does not include the atmospheric pressure. They can be found in various display units.

Specifications of Pressure Gauge

Pressure Gauge

The gauge has to be manufactured according to the reference standard. The pressure range is also very significant. It can vary from kg/cm2, PSI, and bar. The mounting of the gauge can be either a direct bottom or back entry.

How does it work?

A pipe is attached to the shaft assembly and gear, which is used by the gauge. It helps in moving the pointer. If the pressure rises, the pipe or tube faintly disentangles. It makes the shaft assembly and gear to reposition the pointer. The Pressure can then be determined with the help of the pointer.

Installation Process

A needle valve should be attached with the gauge. It keeps the gauge apart in case a replacement is to be done. The purpose of the same is mainly to isolate the gauge. Another critical point is that it should be installed in pairs.

It helps in getting an accurate report on the consistency of the system. Along with the needle valve, compressors, filters, and pumps can also be of excellent service.

How to utilize it?

First of all, through the differential pressure, one can know whether the filter is clogged. It will also help in understanding if the pump is performing efficiently. The proficiency of the pump can be found out through the two pressure gauges.

The incoming pressure should be high on one end, and the other should neither have high nor low pressure. It will immensely help find out the problems concerning your system if you are having any.

How to calibrate it?

There are a few easy steps to calibrate the pressure gauge. First, the calibrating method should go hand in hand with the manufacturer’s requirements. The gauge should be isolated from the source of the pressure.

After that, the pointer should be set too. Pressure should be applied to the gauge, and the pointer should read zero. If not, it should be adjusted while utilizing the valve and isolating the source of pressure.

How to read a pressure gauge?

The pointer should match the number on the gauge. Digital gauges can generally read accurate PSI. The pointer will get in line with the gauge making it easier to read the Pressure.

Measurement Techniques

Mechanical gauges that are widely known as aneroid gauges utilize a metallic component. There are mainly three gauges, capsule element, diaphragm, and bourdon tube.

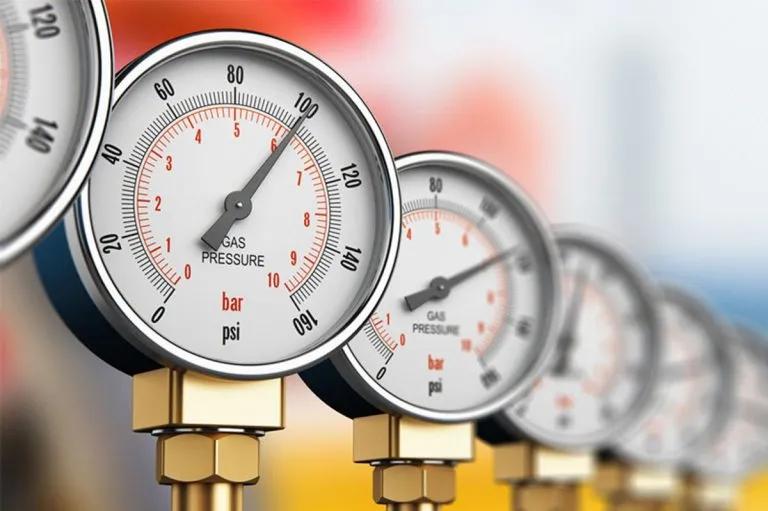

Pressure Gauge

Capsule Element: This predominantly measures air in low-pressure systems. It includes two overlays, which allows the air to enter. The sensor moves horizontally to measure Pressure.

Diaphragm: This is used for gases as well as liquids. It is metallic, and the Pressure is measured while it is sealed against the vacuum.

Bourdon Tube: This is very accurate and most widely used to determine the gauge pressure. It measures from 15 to 1000 PSI. When liquid weight is applied within the cylinder, the oval cross part turns out to be more roundabout. It helps in flattening the pipe. The tubes are mostly seamless.

What if the pressure is too low or high?

Pressure gauges help in getting accurate information on Pressure. Most of the time, if the differential pressure is too low, the filter may be clogged. With the help of the gauge, immediate action can be taken.

However, if the pressure is too high, there may be several leaks and could also result in fittings bursting. The gauge should be well-matched with the kind of application you are using.

Accessories

Seals: The profile of the seal can be internal or external. If it is flat, the rotation of the gauge isn’t as free.

Caps: A safety cap absorbs shock and makes the gauge more durable.

Connectors: This helps in efficiently removing or installing a tube to the gauge.

What should be done if the gauge is showing a negative number

There is a high chance of the pressure gauge malfunctioning if it is showing a negative number. This is why calibration is supposed to be done correctly. The bourdon pipe being pulled into a curve can also result in a negative number. Calibration is an important step and should be done with a proper method.

Frequently asked questions

Why do pressure gauges break often?

Most of the time, technicians work on analog gauges. Those gauges aren’t left on equipment since it will eventually break and cause more problems. Investing in a high-quality digital pressure gauge is more favorable. It has no moving parts to break, unlike the analog ones. It will also be more accurate with more outputs.

Digital pressure gauges will be able to tolerate any clogging, vibration, and the like. Directly purchasing a digital one will save more time and money. Most importantly, it will require very little maintenance.

How will technicians be able to monitor the equipment once it is installed?

Purchasing a gauge that has outputs will allow you to control the valves, switches, and alarms. If a pump brings out more flow and should be monitored all the time, the right outputs will help.

Keeping the differential pressure will allow it to run for more than ten years. With the help of outputs and automation, the valve can be controlled. The pump will work efficiently with no malfunctioning as such.

To sum up

Pressure gauges mainly help in monitoring various water systems. They are very accurate and do not create any problem as such. It provides accurate information if there is any problem in the system, which is very convenient. Knowing the systems’ efficiency and measuring the pressure of the same becomes very easy with the gauges’ help.

Bonus video: How a Pressure Gauge Works tubalcain bourdon tube

WHAT MAKES IT WORK? #15 How a Pressure Gauge Works tubalcain bourdon tube
