How To Test Electrical Wiring: A Step-By-Step Guide

Reading Time: 6 minutes

In today’s tech-driven homes, understanding the intricacies of our electrical systems is more crucial than ever. How To Test Electrical Wiring is not just a skill for electricians; it’s essential knowledge for homeowners and renters alike. Recent statistics reveal that faulty electrical wiring accounts for a significant percentage of residential fires. By equipping yourself with the know-how to test your electrical wiring, you can ensure a safer living environment.

Basics of Electrical Wiring

Ever wondered what’s behind the walls of your home, making your favorite gadgets come to life? It’s the intricate network of electrical wiring. Think of it as the veins and arteries of your home, but instead of blood, they carry electricity.

Electrical wiring is the unsung hero that powers our modern conveniences. From the humble light bulb to the mighty refrigerator, everything depends on it. But with great power (pun intended!) comes great responsibility. Proper electrical wiring isn’t just about convenience; it’s a matter of safety.

Did you know that according to the Electrical Safety Foundation International, home electrical fires account for an estimated 51,000 fires each year? Many of these are due to faulty wiring. Loose connections, outdated systems, or just plain old wear and tear can turn a small issue into a significant hazard.

Why Testing Electrical Wiring is Crucial

Now, you might be thinking, “Why should I bother with How To Test Electrical Wiring?” Well, imagine cooking a meal and suddenly, poof! Darkness. Faulty wiring can lead to unexpected power outages. But that’s just a minor inconvenience compared to the real dangers.

Faulty wiring is like a ticking time bomb. It can lead to electrical shocks or, worse, fires. In fact, the U.S. Fire Administration states that electrical fires account for 6.3% of all residential fires, with many stemming from faulty wiring or overloaded circuits.

But here’s the good news: regular checks and maintenance can prevent these issues. It’s like going for a regular health check-up but for your home. Prevention is always better (and cheaper!) than cure.

Tools Required for Testing Electrical Wiring

Before you dive into the world of electrical testing, you’ll need some tools in your arsenal. Don’t worry; you won’t need a utility belt, just a few essentials:

Tool Function
Multimeter Measures voltage, current, and resistance. Ideal for various tests.
Non-contact voltage tester Detects live wires without physical contact, enhancing safety during testing.
Continuity tester Checks for breaks in wires by testing the flow of electricity from one end to the other.
  • Multimeter: This versatile tool can measure voltage, current, and resistance. It’s like the Swiss Army knife of electrical testing. If you’re new to this.
  • Non-contact voltage tester: Want to know if a wire is live without touching it? This tool is your best friend. It’s the safest way to detect electrical currents.
  • Continuity tester: Ever wondered if there’s a break in your wire? This tool will tell you. It checks if electricity can flow from one end of the wire to the other.

For a deeper dive into the best tools available, the Best Electrical Testers and Meters for Voltage Diagnosis is a fantastic resource.

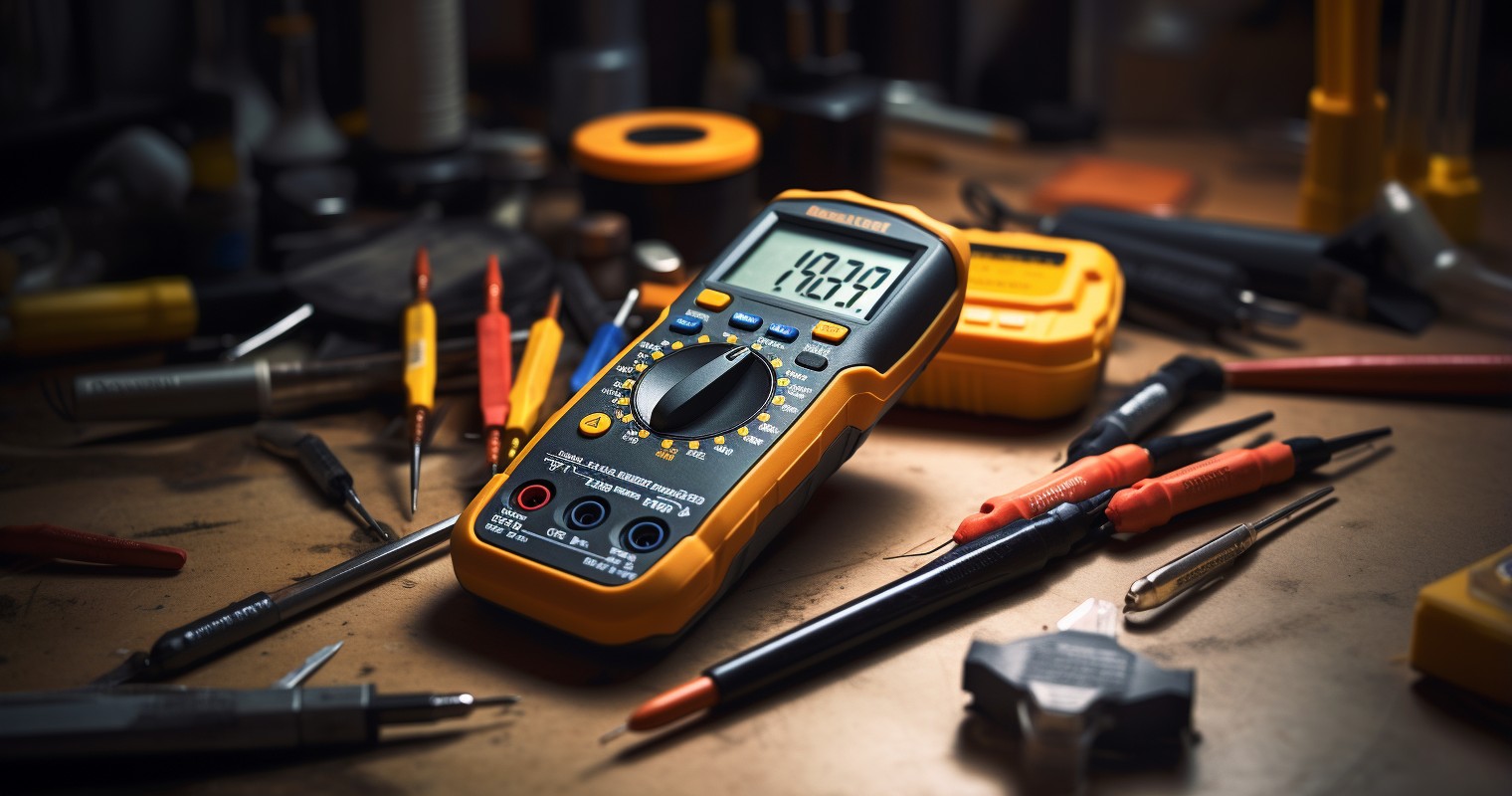

Multimeter And Tools

Preparing for the Test

Before diving into the nitty-gritty of How To Test Electrical Wiring, it’s essential to set the stage right. Think of it as prepping for a grand performance, where safety is the star of the show.

First and foremost, ensure all power sources are turned off. It’s like the golden rule of electrical work. Remember, electricity is a fantastic servant but a terrible master.

Next, gather all the necessary tools and equipment. It’s a bit like assembling your superhero toolkit, but instead of fighting villains, you’re battling potential electrical issues.

Lastly, don your protective gear. Whether it’s gloves, safety goggles, or insulated boots, suit up! You wouldn’t go into battle without armor, would you?

How To Test Electrical Wiring

Now that you’re prepped and ready, let’s dive into the main act. Testing electrical wiring might sound daunting, but with the right steps, it’s a breeze.

Step 1: Start by testing for voltage using a non-contact voltage tester. It’s the quickest way to determine if a circuit is live. Think of it as the canary in the coal mine, giving you a heads-up.

Step 2: Whip out your multimeter and check for continuity. This step ensures that electricity can flow smoothly from point A to point B. It’s like checking if there’s a clear path for your morning jog.

Step 3: Time to play detective! Identify and test switches and outlets. Sometimes, these can be the culprits behind electrical issues.

Step 4: Ground faults can be sneaky. Check for them to ensure there’s no unwanted path for the electrical current. It’s all about keeping the electricity grounded, literally.

For a deeper dive into common issues, Multiple Electrical Outlets Not Working: Why? is a fantastic resource.

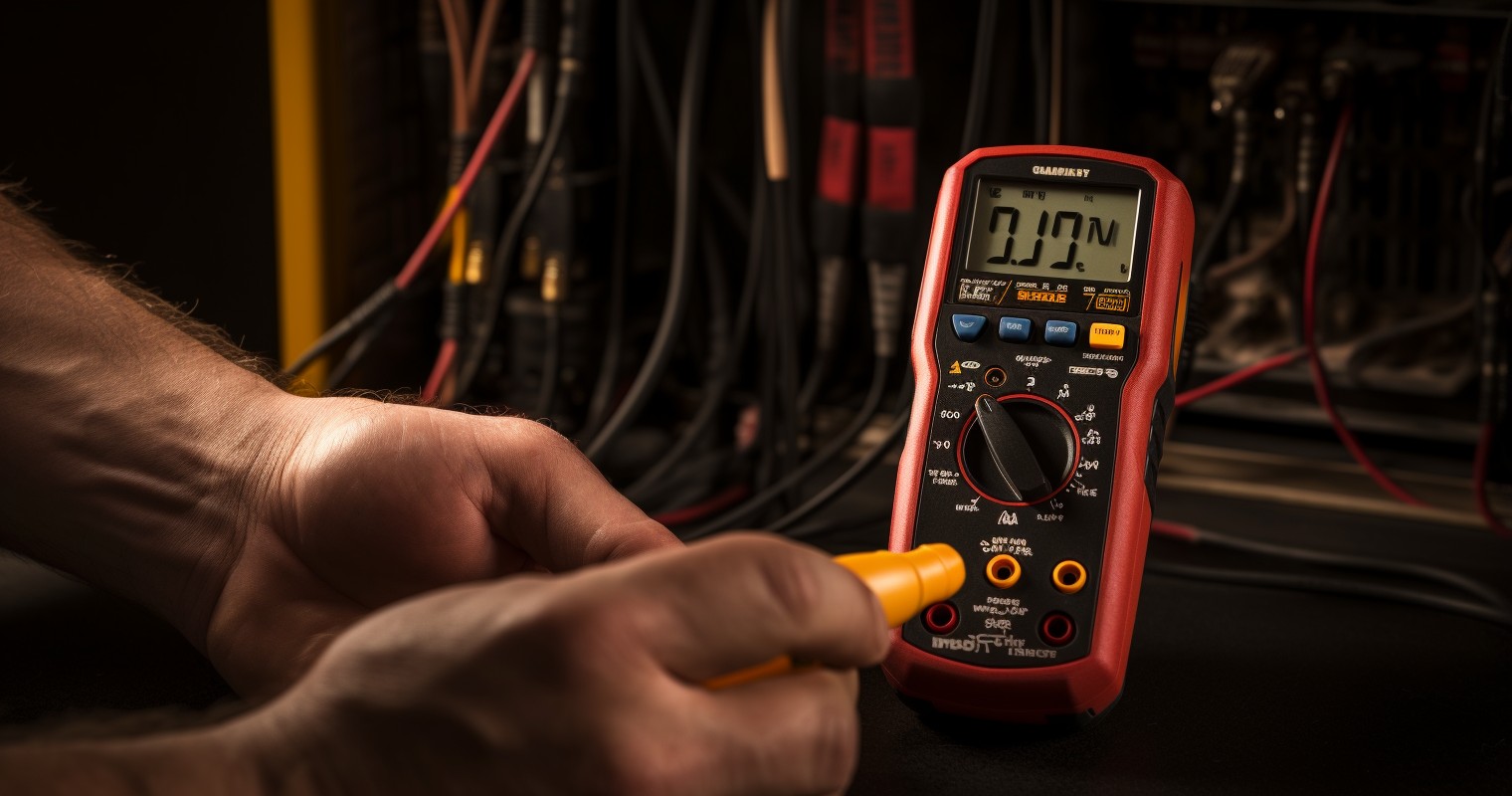

Testing Switches And Outlets

Tips for Accurate Testing

Accuracy is the name of the game when it comes to electrical testing. Here are some pro tips to ensure you’re on the right track:

  • Make sure your multimeter is set to the correct setting. It’s like tuning a guitar; you want the right note.
  • Test outlets at different times of the day. Electrical issues can be like nocturnal animals, more active at certain times.
  • Stay informed about common issues and what they indicate. Knowledge is power, especially when dealing with power!

For more insights on potential pitfalls, Checking for Incorrect Electrical Wiring is an excellent read.

Common Issues and Their Solutions

Ah, the joys of homeownership! Just when you think everything’s running smoothly, a flickering light or a dead outlet reminds you that How To Test Electrical Wiring isn’t just a catchy phrase—it’s a necessity.

Common Issue Description Solution
Loose Connections Common cause of flickering lights. Connections may come undone. Tighten connections; ensure power is off before handling.
Corroded Wires Wires corrode over time, leading to poor conductivity. Replace corroded wires with new ones for better conductivity.
Circuit Breaker Issues Breakers can trip or malfunction, leading to power loss. Reset or replace malfunctioning breakers; check for overloads.

Loose Connections: Ever had a shoelace come undone at the worst moment? That’s what a loose electrical connection feels like. It’s a common culprit behind those annoying flickering lights. The fix? Tighten those connections, but remember to turn off the power first!

Corroded Wires: Think of corrosion as the rest of the electrical world. Over time, wires can corrode, leading to poor conductivity. The solution? Replace those old wires with new, shiny ones.

Circuit Breakers: These little guys are like the guardians of your electrical system. But sometimes, they trip or malfunction. Addressing this means resetting the breaker or, in some cases, replacing it.

For a deeper dive into common electrical issues, No Power to Thermostat: 5 Reasons and Solutions is a must-read.

Ensuring Long-Term Safety

Safety isn’t a one-time deal. It’s a lifelong commitment, especially when it comes to electrical systems.

Regular Maintenance: Just like you’d service your car, your electrical system needs regular check-ups. It ensures everything’s running smoothly and safely.

Call in the Pros: While DIY is all the rage, some tasks are best left to professionals. If you’re ever in doubt or face a complex issue, it’s time to call a professional electrician.

Upgrading Old Systems: Living in a vintage home? Your wiring might need a modern touch. Upgrading ensures your system meets today’s safety standards.

For insights on professional checks, How Do Electricians Check Wiring and Why It’s Important is a fantastic resource.

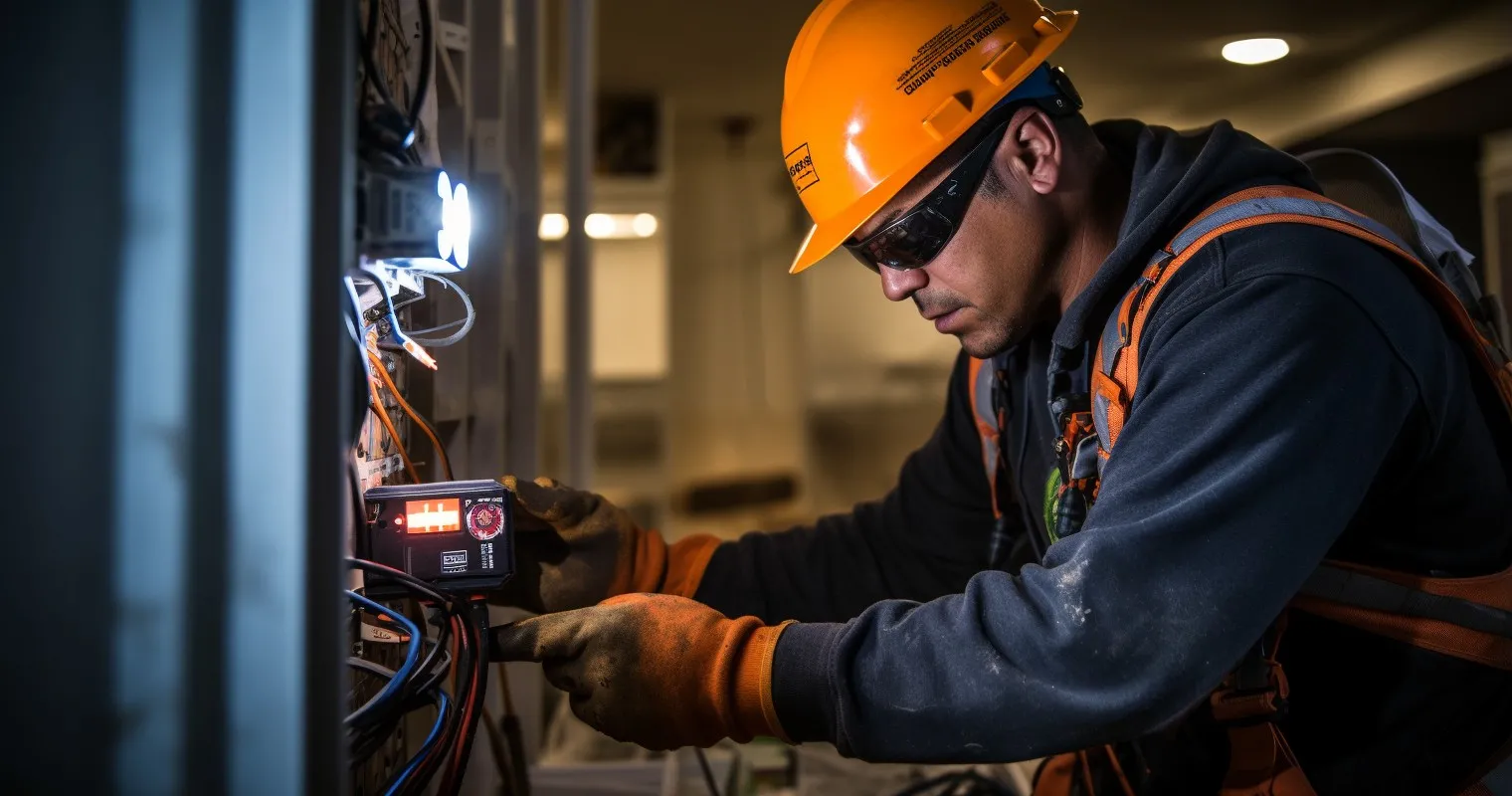

How To Test Electrical Wiring

The Role of Professional Electricians

We’ve all been there—faced with a task that seems insurmountable. That’s when professionals come to the rescue.

Why Hire a Pro?: Sometimes, the stakes are too high. Whether it’s a complex issue or ensuring the safety of your loved ones, professional electricians have the expertise to handle it.

Benefits of Professional Inspections: Think of it as a health check-up for your home. Professionals can spot issues before they become major problems, saving you time, money, and stress.

Local Electrical Codes: Every region has its own set of rules. Professional electricians ensure your system is up to code, avoiding potential legal hassles.

Frequently Asked Questions

What is the importance of knowing How To Test Electrical Wiring?

Knowing how to test electrical wiring is crucial for ensuring the safety of your home. Faulty wiring can lead to electrical fires and other hazards.

Which tools are essential for testing electrical wiring?

Essential tools include:

  • Multimeter
  • Non-contact voltage tester
  • Continuity tester

How often should I test my home’s electrical wiring?

It’s advisable to test your home’s electrical wiring at least once a year or whenever you suspect an issue.

Can I test electrical wiring on my own, or should I hire a professional?

While our guide on “How To Test Electrical Wiring” provides comprehensive steps, if you’re unsure or uncomfortable, always hire a professional electrician.

What are the common issues found when testing electrical wiring?

Common issues include:

  • Loose connections
  • Corroded wires
  • Faulty circuit breakers

Is it safe to test electrical wiring during rainy or wet conditions?

No, it’s unsafe to test electrical wiring in wet conditions. Always ensure a dry environment to prevent electrical shocks.

How can I ensure long-term safety after testing my electrical wiring?

After testing, ensure regular maintenance, address any issues promptly, and consider professional inspections periodically.


Understanding How To Test Electrical Wiring is a pivotal step in ensuring the safety and functionality of your home’s electrical system. By being proactive and knowledgeable, you can prevent potential hazards and ensure a secure living environment. If you found this guide helpful, consider sharing it with friends and family to spread the importance of electrical safety.
