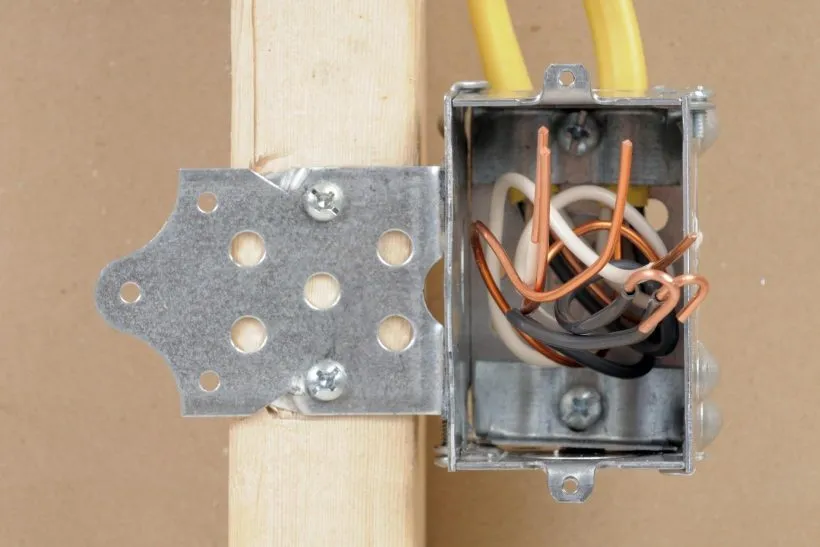

Electrical Outlet Box

Reading Time: 11 minutes

Electrical outlet box: Many of the equipment and appliances you use in your home are powered by wires housed in electrical boxes. You can use These boxes in a wide range of rooms in your house and for some purposes. We have put together this guide to help you identify your Menards project’s correct electrical box type.

When it comes to electrical repairs & remodels, there is no better workhorse than a well-built electrical box. Electrical boxes house various fixtures, including switches, sockets, lights, fans, and even the wires that connect them all.

Electrical boxes come in a wide variety of sizes, sizes, and attachments, but they may all be categorized as plastic or metal boxes.

Choosing between a thin metal electrical box often comes down to personal taste, cost savings, and practicality. The choice is often apparent when it comes to the most fundamental footing issue. Plastic electrical boxes are preferred by most do-it-yourselfers, while electricians use metal boxes.

Aspects Of A Electrical Outlet Box To Bear In Mind

Boxes made of metal are sturdy and secure when attached to studs. Choose to use a metal box if you’re concerned about connecting it to the stud. Strong screws can be inserted into studs in metal boxes to hold more weight.

Boxes made of metal will not bend or deform over time. Because of their high-stress nature, metal boxes are often more durable than the workpiece material they support. Clamps for grasping electrical cords are pre-attached to some metal boxes, and clamps for other tubes must be purchased separately, increasing the overall cost of the container.

Metal crates may be a little more challenging to work with for DIY electricians than plastic boxes.

Considerations For Plastic Boxes

Do-it-yourself home remodelers can quickly deal with plastic electrical boxes. Pre-attached nails are the cheapest plastic containers for nailing into the studs. The height of 1/2-inch drywall is pre-set on the box to prevent the installation from attaching the box face level with the stud.

Old-work or renovation boxes come with wings that can hang directly from drywall. If there is no unlimited access to a stud, these are used.

Electrical Outlet Box

Plastic boxes with metal brackets attached to the studs can be moved forward and backward with a Phillips screwdriver in another kind of plastic box. It is the most expensive plastic box, but they allow for the most incredible customization when the wall thickness is still a mystery.

When working with Romex or NM wiring, many do-it-yourselfers choose plastic electrical outlet boxes. For starters, plastic cartons are preferred by home improvement stores. On the other hand, plastic bins are lighter, their corners are softer, & their holes are better to reduce. Can clamp  The cable to the plastic box instead of using additional clamps, saving space.

On the other hand, plastic boxes tend to deform under pressure, and plastic containers can break if struck hard enough. As helpful as having the door clamps pre-installed, they can be obstinate in their hold on the cable. Old work boxes affixed to drywall can move away from the wall and break their connection wings.

Before You Go Shopping, Read This.

Electrical outlet box: Before beginning this or other electrical projects, obtaining the necessary permissions and researching your local electronics codes is essential. Local regulations may restrict the use of some kinds of electrical boxes, and you can find out more by contacting your local building inspector.

Specify The Type Of Installation Of Electrical Outlet Box

Boxes From A Bygone Time

The old work crates are repurposed for wall installations. It isn’t required to remove, replace, and refinish a significant portion of walls and ceilings to fit a new box. Installing a repurposed toolbox only takes a few minutes. Using the built-in mounting tabs, cut a hole large enough to accommodate the box, insert cable, and connect the box to the existing wall covering. When the framework members are inaccessible, use a former workbox for installation.

New Workstations

New work containers are used when the back of a wall or ceiling isn’t covered. The new work boxes can be attached directly to the space’s walls and ceiling framing components. Should use A new employment box for large-scale wall removals or replacements.

Gangs, Volume, And Setbacks

Conductors and wire devices can fit in the overall amount of a box. A box’s volume is specified in cubic centimeters, and it must match or surpass the combined volume of the contents it contains. Add up the importance of all the wires, connections, and devices (outlets, switch, dimmers, etc.) that will be placed in the box to calculate the size of the container you will require.

Depending on how far back a box’s setback is, it will set its face from the wall. If you’re using tile and other thick wall coverings, this is something to keep in mind. To assure the correct setback, use a box with an adjustable depth. It is possible to fit more outlets, valves, and dimmers into a box if it has a higher number of gangs. A one-gang box is wide enough to fit one item, such as an outlet or switch.

Knockouts, Cable Clamps, And Connectors

Nonmetals (NM) cable, conduits, or steel cable can all be used in electrical boxes. To prevent the connection from being ripped out of the box, many NM boxes contain an integrated clamp. Knockouts of various shapes and sizes can be seen in conduit & metal-clad cable boxes. I can also run NM cable through these boxes. Connect the cable to the TV with a specified NM cable connector.

Materials

Steel, PVC, fiberglass, or cast aluminum are the most popular materials for electrical outlet boxes. The environment plays a significant role in determining the best material to utilize. Should use The waterproof box outside.

With the proper fittings, steel is ideal for nonmetallic sheathed (NM) cable and all types of conduits & metal-clad cables in indoor applications. Steel is a good conductor of electricity, so be sure to ground any steel containers in your home.

PVC boxes are the ideal option in the case of nonmetallic-sheathed (NM) cables. NM cable & electrical nonmetallic tubing can be utilized in PVC boxes with knockouts (ENT). A non-metallic conduit can use  PVC boxes with screwed hubs indoors and outdoors.

 Nonmetallic-sheathed (NM) cable: Fibreglass is appropriate for interior application.

Whether in damp environments indoors or out, cast aluminum is an excellent choice for weatherproof applications both indoors and out.

Varieties Of Electrical Outlet Box

Boxes That Can Be Used As Storage

Installing outlets and switches on external surfaces is often done using convenient boxes (also referred to as utility boxes). Handy boxes come in one- and two-gang variants for indoor application. If the package you’re considering has a mounting bracket, it’s an option. Ceiling fans, wall or ceiling lighting, or outside weatherproof applications are not allowed to use these products.

Boxes In The Shape Of Squares

In addition to the standard 4″ x 4″ & 4-11/16″ x 4-11/16″ dimensions, square boxes come in various depths, even without mounting brackets.

If you’re looking to hide something behind a wall, a square box is suitable. As a junction point for many wires, they can also increase volume and wire-bending space. Without fan support, we can use square boxes for ceiling applications. In addition to metal-clad cable, it can utilize steel square boxes with nonmetallic-sheathed lines.

Toggle Switches

It is usual practice to use a switch box to attach the switch. Outside the box, switch boxes have device-mounting tabs to connect devices. Switch boxes are only suitable for in-wall (hidden) applications. A mounting bracket makes it easier to install in new work environments. When installing into walls that are already covered, use an old-fashioned method.

The Floor Boxes

Floor boxes are a suitable alternative in places where wall outlets are impractical. Grand halls and massive buildings benefit significantly from the use of these boxes. When constructing a new building, you can put floor containers by mounting them or making a hole in the ground for previous work boxes. May usually adjust  Floor boxes to fit any floor thickness.

Box In The Ceiling

Install light ceiling-mounted lights and gadgets like smoke alarms in conventional ceiling boxes. Hanging ceiling fans & large light fixtures should be supported by a listed ceiling fan/fixture support. You can purchase Round or octagonal ceiling boxes with and without a mounting kit because they are available in various colors. Bracketed boxes can be fastened immediately to the ceilings or a ceiling member with little effort at all. When the framework members are inaccessible, use a former workbox for installation.

Boxes That Can Withstand The Elements

Can use Boxes made of weatherproof material either outside or indoors in damp or rainy conditions. For outlets and switches, they come in one-gang & two-gang variants and round for light fixtures. Always use a suitable weatherproof or while-in-use cover to ensure a problem installation.

The 5 Most Effective Electrical Outlet Boxes

1. Extension Cord Connections Box – Grey Resistant Outdoor Cover For Electricity Connections – Weatherproof Extension

Extension Cord Connections Box - Grey Resistant Outdoor Cover For Electricity Connections - Weatherproof Extension

Specification:

  • Colour: grey
  • It’s plastic.

This outdoor connector cover is ideal for outdoor lighting, water features, Holiday decorations, power tools, and more. It protects you & your electrical devices from the elements.

Water, dust, dirt, and some other outdoor irritants are all protected by the IP54 rating.

Conclusion:

Iron Forge Cable’s Weatherproof Electrical Boxes are intended to last thanks to their heavy-duty plastic construction and sturdy, durable design. This compact, easy-to-use outdoor connecting box is ideal for landscaping because it requires no installation.

Iron Forge Cable offers a lifetime warranty on all of its products. If anything goes wrong with this waterproof box, we’ll get a replacement one.

Extension Cord Connections Box
  • PROTECTS YOUR ELECTRICAL DEVICES - Ideal for landscape lighting, water features, Christmas decorations, power tools and more, this...
  • RESISTANT AGAINST WATER, DUST & DIRT - IP54 rated to protect against water, dust, dirt, and other outdoor irritants.
  • FITS UP TO A 6 SOCKET POWER STRIP - This large outdoor extension cord box fits up to a 6 socket power strip. Includes cable seal...
  • BUILT TO LAST - Made with heavy duty plastic and a strong durable design, Iron Forge Cable’s Weatherproof Electrical Boxes are...

Pros

  • Impossible To Water, Dust, Or Dirt
  • Can use Power Strips with six sockets.

Cons

  • heftier than plastic boxes

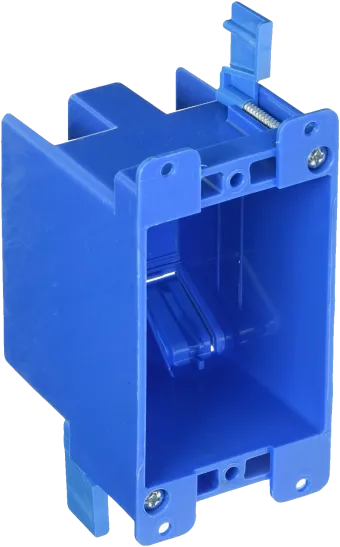

2. Carlon Lamson Home Goods Number-1g Old Work Boxes Pack Of 3, Blue, Carlon B114r-Upc

Carlon Lamson Home Goods Number-1g Old Work Boxes Pack Of 3, Blue, Carlon B114r-Upc

Specification:

  • In terms of overall size, it’s 4.25 “2.25 broad by 2.7 deep inches tall
  • Dimensions: 2.875″ high, 2″ width, 2.75″ deep when closed “a depth of

Durable polycarbonate construction makes this outlet cover lockable and straightforward to install, and it fits a full-size padlock. A Weather-resistant Powdercoat Finish Covers The Heavy Duty Drop-dead Aluminum Outlet Box, Keeping It Safe From the Elements. Protects Electrical Circuits From Rain And Dirt.

Conclusion:

Electrical plug-in things are formulated for use in the United States. Bring an adaptor or converter with you if you plan to use this product outside of the United States. Should do A compatibility check before making a purchase.

Sale
Carlon Lamson Home Goods Number-1g Old Work Boxes Pack Of 3
  • Carlon B114R-UPC Lamson Home Products Number-1G Old Work Box Pack of 3
  • 3-3/4" x 2-3/8" rectangular Hole needed
  • Overall outside dimensions: 4.25" tall, 2.25" wide, 2.75" deep
  • Inside dimensions: 2.875" tall, 2" wide, 2.75" deep

Pros

  • Strong

Cons

  • Knock-outs might be challenging to remove in some cases.

3. Madison Electric Box For One Gang Devices With Adjustable Depth, Rated At 42 Pounds, Grey Msb1g

Madison Electric Box For One Gang Devices With Adjustable Depth, Rated At 42 Pounds, Grey Msb1g

Specification:

  • Polyvinyl Chloride is the material used.
  • Madison Electric Products is the name of the brand.
  • Colour: Grey

Hand tools, meters, testers, illumination, electrical wires, temporary power solutions & contractor equipment are all available from Southwire Tools & Equipment. They were built to withstand wear and tear and designed to withstand the test of time and focused on productivity.

Conclusion:

You can’t swing a hammer in new worksites, including kitchens and bathrooms, and the Original Intelligent Boxes are unequaled in their versatility. Because they are constantly attached to a stud, they are the best choice for older or retrofit projects. Until the advent of Smart Box, all other manufacturers used 3/8 or 1/2 sheetrock or worse, lathe and plaster to hang their cut boxes.

Madison Electric Box For One Gang Devices
  • Country Of Origin : China
  • Product Type : Bearing And Bushing
  • Mounts To Wood Or Metal Stud 25G
  • Extra Thick Pvc Wall Material Creates Stability And Rigidity

Pros

  • Easily Adjustable Depth
  • Screws with a 42 lb. Weight capacity is included.

Cons

  • Sharp edges can chafe hands.

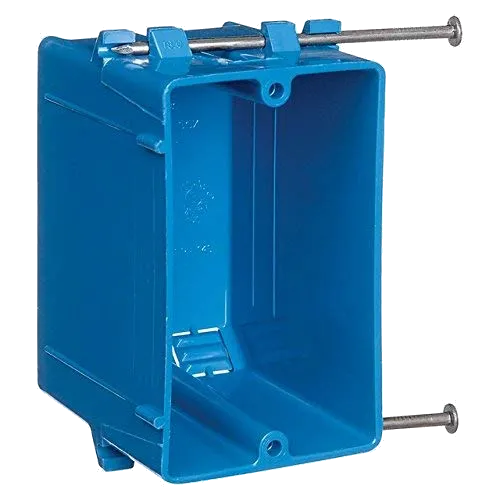

4. Gang Zip Box By Thomas & Betts B118a, 18 Cu. In (Pack Of 100)

Gang Zip Box By Thomas & Betts B118a, 18 Cu. In (Pack Of 100)

Specification:

  • Vinyl chloride, or PVC.
  • The Thomas & Betts nameplate
  • Full-color version of the original

Carlon’s non-metallic boxes are made of PVC, making them easier to install, perform better, and cost less. When used in compliance with Section 313 of the Electricity At Work regulations, it can easily handle any residential or small commercial application.

Conclusion:

All of ABB Installation Products’ switch and outlet boxes are manufactured to the highest standards and come in a wide variety of sizes and configurations.

Gang Zip Box By Thomas & Betts B118a, 18 Cu. In
  • Material: Non-Metallic
  • PVC construction for easier installation, greater performance and lower installation cost
  • Color: Blue
  • Designed and listed for use with non-metallic sheathed cable in accordance with Article 314 of the National Electrical Code

Pros

  • Materials that are not metals
  • PVC construction is easier to install, more durable, and more cost-effective than other materials.

Cons

  • Separate clamps are required; this feature is not built-in.

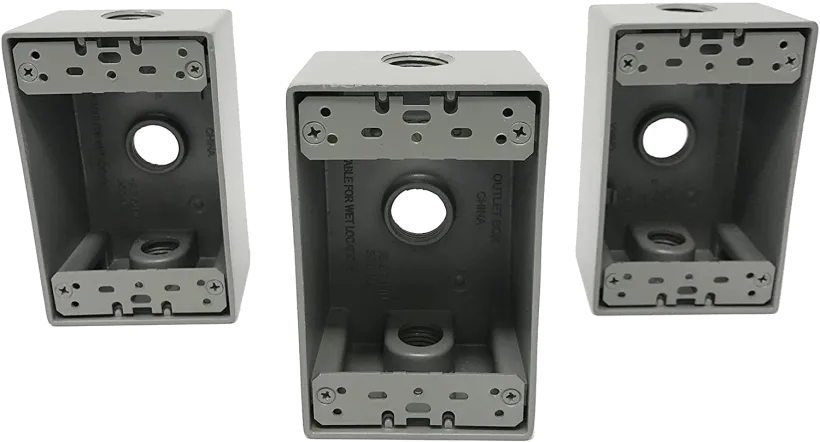

5. Sealproof three 1/2-Inch Holes 1-Gang Box With Three 1/2-Inch Outlet Holes For Weatherproof Rectangle Exterior Electrical Service “Assembled 3-Pack Of Single Gang Hole Holes

Sealproof three 1/2-Inch Holes 1-Gang Box With Three 1/2-Inch Outlet Holes For Weatherproof Rectangle Exterior Electrical Service "Assembled 3-Pack Of Single Gang Hole Holes

Specification:

  • Material: Aluminium
  • Brand: Sealproof
  • Inches in length, width, and height.

The 3-1/2-inch wide Seal Proof 1-Gang Electricity Box “There are holes in everything. This waterproof outlet box is bronze in color and includes plugs and self-tapping ground screws for easy installation. To make it watertight, a powder coat finish was applied.

Conclusion:

With a weather-resistant powder coat finish, it’s built to withstand the elements and protects any electrical circuit from rain and debris.

Sealproof three 1/2-Inch Holes 1-Gang Box With Three 1/2-Inch Outlet Holes
  • Includes mounting lugs, closure plugs and self-threading ground screws for easy assembly.
  • Heavy duty die-cast aluminum construction with a weatherproof powdercoat finish to protect it from the elements. Keeps rain and...
  • Cross Reference: SB350S / 30203 / WPB23

Pros

  • Strong

Cons

  • Grounding is not provided.

Conclusion:

Metal electrical outlet boxes were in use before introducing PVC (Polyvinyl Chloride) electrical boxes. It is impossible to melt metal boxes since they are incredibly robust, fireproof, and resistant to heat.

Plastic containers can twist even if they are just slightly pressured. Plastic boxes will expand if they are subjected to significant tension. Hammering the plastic container to the stud in the wrong direction can cause it to twist. There’s no such issue with metal electrical boxes: Metal electric or junction boxes can’t be bent or crushed.

Electrical Outlet Box: Frequently Asked Questions

1. Is There A Maximum Length For Cables In An Outlet Box?

The junction box must have at least 6 inches of free circuit wiring for connection reasons when electrical cables are routed from box to box.

2. How Several Wires Can You Pigtail?

The Box Contains More than Two Cables.

Only pigtails can connect receptacles in a container with three cables correctly. You should never use more than one screw terminal to join many wires.

3. Does The Outlet Box Need To Be Flush With The Studs?

Wall boxes can be guided into place during new construction by screwing down a piece of plasterboard to the front face of studs. To ensure that the boxes are finished at the correct depth when you attach an input jack, ensure that it is flush with the base of this drywall strip.

4. Are Outlets Intended To Be Level With The Drywall Or Are They Supposed To Protrude?

As a general rule, drywall at least 1/2-inch thick should be used to complete a front touchline. The box can be positioned using a scrap of drywall.

5. How Long Can You Keep An Electrical Box Extended?

As it turns out, there is a simple solution in the form of a box extender. Box extensions are plastic or metal rings that fit tightly around or inside a pre-existing electrical panel and are available in various sizes and depths.
